Quantum Information Processing

Quantum Circuit

The most common model for quantum computing is the quantum circuit model. In QuTiP, we use QubitCircuit to represent a quantum circuit. The circuit is characterized by registers and gates:

  • Registers: The argument N specifies the number of qubit registers in the circuit and the argument num_cbits (optional) specifies the number of classical bits available for measurement and control.

  • Gates: Each quantum gate is saved as a class object Gate with information such as gate name, target qubits and arguments. Gates can also be controlled on a classical bit by specifying the register number with the argument classical_controls.

  • Measurements: We can also carry out measurements on individual qubit (both in the middle and at the end of the circuit). Each measurement is saved as a class object Measurement with parameters such as targets, the target qubit on which the measurement will be carried out, and classical_store, the index of the classical register which stores the result of the measurement.

A circuit with the various gates and registers available is demonstrated below:

from qutip_qip.circuit import QubitCircuit
from qutip_qip.operations import Gate
from qutip import tensor, basis

qc = QubitCircuit(N=2, num_cbits=1)
swap_gate = Gate(name="SWAP", targets=[0, 1])

qc.add_gate(swap_gate)
qc.add_measurement("M0", targets=[1], classical_store=0) # measurement gate
qc.add_gate("CNOT", controls=0, targets=1)
qc.add_gate("X", targets=0, classical_controls=[0]) # classically controlled gate
qc.add_gate(swap_gate)

print(qc.gates)

Output:

  [Gate(SWAP, targets=[0, 1], controls=None, classical controls=None, control_value=None, classical_control_value=None),
  Measurement(M0, target=[1], classical_store=0),
  Gate(CNOT, targets=[1], controls=[0], classical controls=None, control_value=1, classical_control_value=None),
  Gate(X, targets=[0], controls=None, classical controls=[0], control_value=None, classical_control_value=1),
  Gate(SWAP, targets=[0, 1], controls=None, classical controls=None, control_value=None, classical_control_value=None)]

Unitaries

There are a few useful functions associated with the circuit object. For example, the QubitCircuit.propagators() method returns a list of the unitaries associated with the sequence of gates in the circuit. By default, the unitaries are expanded to the full dimension of the circuit:

U_list = qc.propagators(ignore_measurement=True)
print(U_list)

Output:

[Quantum object: dims=[[2, 2], [2, 2]], shape=(4, 4), type='oper', dtype=CSR, isherm=True
Qobj data =
[[1. 0. 0. 0.]
 [0. 0. 1. 0.]
 [0. 1. 0. 0.]
 [0. 0. 0. 1.]], Quantum object: dims=[[2, 2], [2, 2]], shape=(4, 4), type='oper', dtype=CSR, isherm=True
Qobj data =
[[1. 0. 0. 0.]
 [0. 1. 0. 0.]
 [0. 0. 0. 1.]
 [0. 0. 1. 0.]], Quantum object: dims=[[2, 2], [2, 2]], shape=(4, 4), type='oper', dtype=CSR, isherm=True
Qobj data =
[[0. 0. 1. 0.]
 [0. 0. 0. 1.]
 [1. 0. 0. 0.]
 [0. 1. 0. 0.]], Quantum object: dims=[[2, 2], [2, 2]], shape=(4, 4), type='oper', dtype=CSR, isherm=True
Qobj data =
[[1. 0. 0. 0.]
 [0. 0. 1. 0.]
 [0. 1. 0. 0.]
 [0. 0. 0. 1.]]]

Another option is to only return the unitaries in their original dimension. This can be achieved with the argument expand=False specified to the QubitCircuit.propagators().

U_list = qc.propagators(expand=False, ignore_measurement=True)
print(U_list)

Output:

[Quantum object: dims=[[2, 2], [2, 2]], shape=(4, 4), type='oper', dtype=Dense, isherm=True
Qobj data =
[[1. 0. 0. 0.]
 [0. 0. 1. 0.]
 [0. 1. 0. 0.]
 [0. 0. 0. 1.]], Quantum object: dims=[[2, 2], [2, 2]], shape=(4, 4), type='oper', dtype=Dense, isherm=True
Qobj data =
[[1. 0. 0. 0.]
 [0. 1. 0. 0.]
 [0. 0. 0. 1.]
 [0. 0. 1. 0.]], Quantum object: dims=[[2], [2]], shape=(2, 2), type='oper', dtype=Dense, isherm=True
Qobj data =
[[0. 1.]
 [1. 0.]], Quantum object: dims=[[2, 2], [2, 2]], shape=(4, 4), type='oper', dtype=Dense, isherm=True
Qobj data =
[[1. 0. 0. 0.]
 [0. 0. 1. 0.]
 [0. 1. 0. 0.]
 [0. 0. 0. 1.]]]

Gates

The pre-defined gates for the class Gate are shown in the table below:

Gate name

Description

“RX”

Rotation around x axis

“RY”

Rotation around y axis

“RZ”

Rotation around z axis

“R”

Arbitrary single qubit rotation

“X”

Pauli-X gate

“Y”

Pauli-Y gate

“Z”

Pauli-Z gate

“S”

Single-qubit rotation or Z90

“T”

Square root of S gate

“SQRTNOT”

Square root of NOT gate

“SNOT”

Hadamard gate

“PHASEGATE”

Add a phase one the state 1

“CRX”

Controlled rotation around x axis

“CRY”

Controlled rotation around y axis

“CRZ”

Controlled rotation around z axis

“CX”

Controlled X gate

“CY”

Controlled Y gate

“CZ”

Controlled Z gate

“CS”

Controlled S gate

“CT”

Controlled T gate

“CPHASE”

Controlled phase gate

“CNOT”

Controlled NOT gate

“CSIGN”

Same as CPHASE

“QASMU”

U rotation gate used as a primitive in the QASM standard

“BERKELEY”

Berkeley gate

“SWAPalpha”

SWAPalpha gate

“SWAP”

Swap the states of two qubits

“ISWAP”

Swap gate with additional phase for 01 and 10 states

“SQRTSWAP”

Square root of the SWAP gate

“SQRTISWAP”

Square root of the ISWAP gate

“MS”

Mølmer-Sørensen gate

“FREDKIN”

Fredkin gate

“TOFFOLI”

Toffoli gate

“GLOBALPHASE”

Global phase

For some of the gates listed above, QubitCircuit also has a primitive QubitCircuit.resolve_gates() method that decomposes them into elementary gate sets such as CNOT or SWAP with single-qubit gates (RX, RY and RZ). However, this method is not fully optimized. It is very likely that the depth of the circuit can be further reduced by merging quantum gates. It is required that the gate resolution be carried out before the measurements to the circuit are added.

Custom Gates

In addition to these pre-defined gates, QuTiP also allows the user to define their own gate. The following example shows how to define a customized gate. The key step is to define a gate function returning a qutip.Qobj and save it in the attribute user_gates.

Note

Available from QuTiP 4.4

from qutip_qip.operations import Gate, rx

def user_gate1(arg_value):
     # controlled rotation X
     mat = np.zeros((4, 4), dtype=np.complex128)
     mat[0, 0] = mat[1, 1] = 1.
     mat[2:4, 2:4] = rx(arg_value).full()
     return Qobj(mat, dims=[[2, 2], [2, 2]])


def user_gate2():
     # S gate
     mat = np.array([[1.,   0],
                     [0., 1.j]])
     return Qobj(mat, dims=[[2], [2]])

qc = QubitCircuit(2)
qc.user_gates = {"CTRLRX": user_gate1,
                 "S"     : user_gate2}

# qubit 0 controls qubit 1
qc.add_gate("CTRLRX", targets=[0,1], arg_value=np.pi/2)

# qubit 1 controls qubit 0
qc.add_gate("CTRLRX", targets=[1,0], arg_value=np.pi/2)

# we also add a gate using a predefined Gate object
g_T = Gate("S", targets=[1])
qc.add_gate(g_T)
props = qc.propagators()

print(props[0])

Output:

Quantum object: dims=[[2, 2], [2, 2]], shape=(4, 4), type='oper', dtype=CSR, isherm=False
Qobj data =
  [[1.     +0.j      0.     +0.j      0.     +0.j      0.     +0.j     ]
   [0.     +0.j      1.     +0.j      0.     +0.j      0.     +0.j     ]
   [0.     +0.j      0.     +0.j      0.70711+0.j      0.     -0.70711j]
   [0.     +0.j      0.     +0.j      0.     -0.70711j 0.70711+0.j     ]]

print(props[1])

Output:

Quantum object: dims=[[2, 2], [2, 2]], shape=(4, 4), type='oper', dtype=CSR, isherm=False
Qobj data =
[[1.     +0.j      0.     +0.j      0.     +0.j      0.     +0.j     ]
 [0.     +0.j      0.70711+0.j      0.     +0.j      0.     -0.70711j]
 [0.     +0.j      0.     +0.j      1.     +0.j      0.     +0.j     ]
 [0.     +0.j      0.     -0.70711j 0.     +0.j      0.70711+0.j     ]]

print(props[2])

Output:

  Quantum object: dims=[[2, 2], [2, 2]], shape=(4, 4), type='oper', dtype=CSR, isherm=False
  Qobj data =
  [[1.+0.j 0.+0.j 0.+0.j 0.+0.j]
   [0.+0.j 0.+1.j 0.+0.j 0.+0.j]
   [0.+0.j 0.+0.j 1.+0.j 0.+0.j]
   [0.+0.j 0.+0.j 0.+0.j 0.+1.j]]

Plotting Quantum Circuits

QuTiP-QIP offers three distinct methods for visualizing quantum circuits. Below is an example that demonstrates how to create and plot a quantum circuit using these methods:

  • Matplotlib (Default):

from qutip_qip.circuit import QubitCircuit
from qutip_qip.operations import Gate

# create the quantum circuit
qc = QubitCircuit(2, num_cbits=1)
qc.add_gate("CNOT", controls=0, targets=1)
qc.add_gate("SNOT", targets=1)
qc.add_gate("ISWAP", targets=[0,1])
qc.add_measurement("M0", targets=1, classical_store=0)

qc.draw("matplotlib", dpi=300)

(png, hires.png, pdf)

_images/qip-basics-1.png

Customization Examples:

from qutip_qip.circuit import QubitCircuit
from qutip_qip.operations import Gate

# create the quantum circuit
qc = QubitCircuit(2, num_cbits=1)
qc.add_gate("CNOT", controls=0, targets=1)
qc.add_gate("SNOT", targets=1)
qc.add_gate("ISWAP", targets=[0,1])
qc.add_measurement("M0", targets=1, classical_store=0)

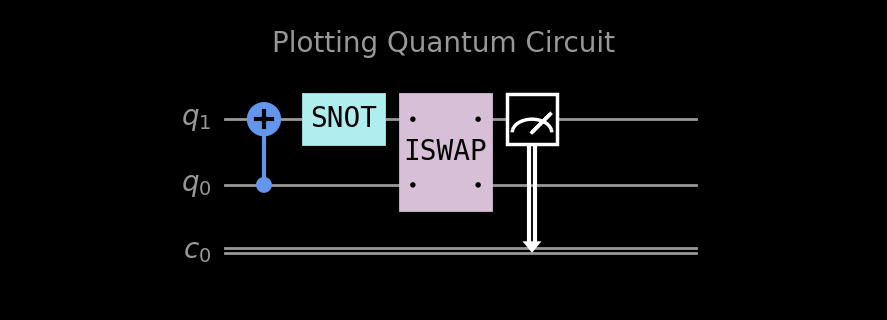

qc.draw("matplotlib", bulge=False, theme='dark', title="Plotting Quantum Circuit", dpi=300)

(png, hires.png, pdf)

_images/qip-basics-2.png

Customization Parameters

Parameter

Description

dpi : int = 150

DPI of the figure.

fontsize : int = 10

Fontsize control at the circuit level, including tile and wire labels.

end_wire_ext : int = 2

Extension of the wire at the end of the circuit.

padding : float = 0.3

Padding between the circuit and the figure border.

gate_margin : float = 0.15

Margin space left on each side of the gate.

wire_sep : float = 0.5

Separation between the wires.

layer_sep : float = 0.5

Separation between the layers.

gate_pad : float = 0.05

Padding between the gate and the gate label.

label_pad : float = 0.1

Padding between the wire label and the wire.

bulge : Union[str, bool] = True

Bulge style of the gate. Renders non-bulge gates if False.

align_layer : bool = False

Align the layers of the gates across different wires.

theme : Optional[Union[str, Dict]] = "qutip"

Color theme of the circuit. Available themes are ‘qutip’, ‘light’, ‘dark’ and ‘modern’.

title : Optional[str] = None

Title of the circuit.

bgcolor : Optional[str] = None

Background color of the circuit.

color : Optional[str] = None

Controls color of accent elements (e.g., cross sign in the target node) and sets as default color of gate-label. Can be overwritten by gate-specific color.

wire_label : Optional[List] = None

Labels of the wires.

wire_color : Optional[str] = None

Color of the wires.

  • Text:

from qutip_qip.circuit import QubitCircuit
from qutip_qip.operations import Gate

# create the quantum circuit
qc = QubitCircuit(2, num_cbits=1)
qc.add_gate("CNOT", controls=0, targets=1)
qc.add_gate("SNOT", targets=1)
qc.add_gate("ISWAP", targets=[0,1])
qc.add_measurement("M0", targets=1, classical_store=0)

qc.draw("text")

         ┌──────┐  ┌──────┐  ┌───────┐  ┌───┐
  q1 :───┤ CNOT ├──┤ SNOT ├──┤       ├──┤ M ├───
         └───┬──┘  └──────┘  │       │  └─╥─┘
             │               │       │    ║
  q0 :───────█───────────────┤ ISWAP ├────║─────
                             └───────┘    ║
                                          ║
  c0 :════════════════════════════════════╩═════

Customization Parameters

Parameter

Description

gate_pad : int = 1

Padding between the gate and the gate label.

wire_label : Optional[List] = None

Labels of the wires.

align_layer : bool = False

Align the layers of the gates across different wires.

end_wire_ext : int = 2

Extension of the wire at the end of the circuit.

  • LaTeX:

    A quantum circuit (described above) can directly be plotted using the QCircuit library (https://github.com/CQuIC/qcircuit). QCiruit is a quantum circuit drawing application and is implemented directly into QuTiP.

    More information related to installing these packages is also available in the installation guide (Additional software for Plotting Circuits).

    An example code for plotting the example quantum circuit from above is given:

    from qutip_qip.circuit import QubitCircuit
from qutip_qip.operations import Gate

# create the quantum circuit
qc = QubitCircuit(2, num_cbits=1)
qc.add_gate("CNOT", controls=0, targets=1)
qc.add_gate("SNOT", targets=1)
qc.add_gate("ISWAP", targets=[0,1])
qc.add_measurement("M0", targets=1, classical_store=0)

qc.draw("latex")
    _images/quantum_circuit_example.png

Circuit simulation

There are two different ways to simulate the action of quantum circuits using QuTiP:

  • The first method utilizes unitary application through matrix products on the input states. This method simulates circuits exactly in a deterministic manner. This is achieved through CircuitSimulator. A short guide to exact simulation can be found at Gate-level circuit simulation. The teleportation notebook is also useful as an example.

  • A different method of circuit simulation employs driving Hamiltonians with the ability to simulate circuits in the presence of noise. This can be achieved through the various classes in device.A short guide to processors for QIP simulation can be found at Pulse-level circuit simulation.
